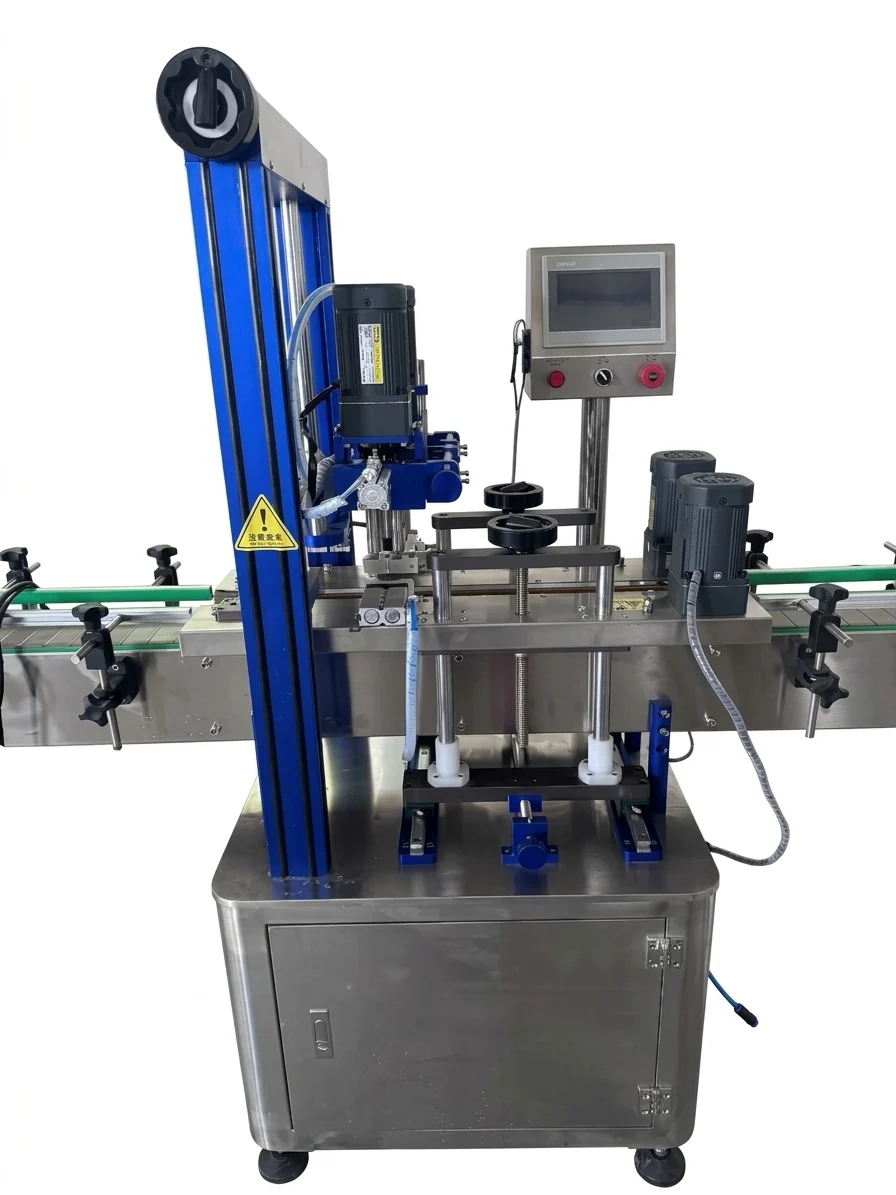

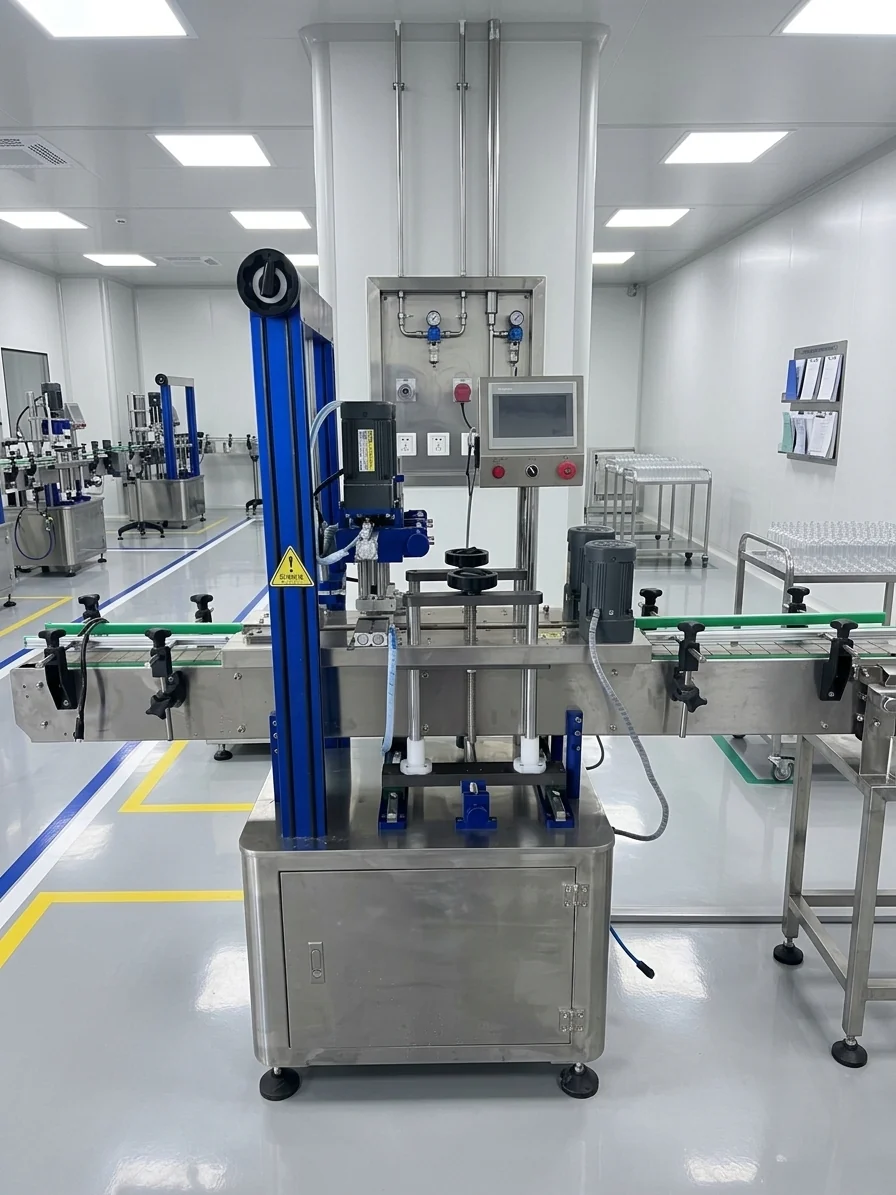

Four-wheel automatic capping machine

This is a four-wheel automatic capping machine that screws and tightens spray heads, pump heads, round caps, and duck-bill caps. Bottle diameter, height, and cap size are adjustable. It is used for bottles in daily chemical, pharmaceutical, food, and beverage products. The machine is quoted to the bottle, the cap, and the site.

  • Four capping wheels screw the cap on as the bottle passes; electric and pneumatic control.
  • Capping speed and tightness are adjustable for different caps.
  • Handwheel adjustment of capping height; adjustable bottle-clamp belt width and height.
  • Touchscreen and PLC control, with manual and automatic modes.
  • Conveyor and capping motor can each run intermittently or continuously.
  • Adjustable bottle-clamp delay, release delay, capping time and capping delay.

Ask for a quote

Definition

A four-wheel automatic capping machine.

Features

It screws and tightens spray heads, pump heads, round caps, and duck-bill caps.

FAQ

What caps can this machine handle?
It screws and tightens spray heads, pump heads, round caps, and duck-bill caps. The specs table also lists plastic or metal round caps, pump caps, and duck-bill caps.
Is this machine automatic?
Yes. It is a four-wheel automatic capping machine with touchscreen and PLC control, and with manual and automatic modes.
What sizes and speed are listed on this page?
Cap diameter Φ20–65 mm (other sizes on request), bottle height 70–300 mm (other heights on request), and capping speed 20–50 bottles/min.
What is confirmed on the quote?
The bottle, the cap, and the site.

Specifications

VoltageAC 220 V, 50/60 Hz
Power800 W
Air supply0.4–0.6 MPa
Cap diameterΦ20–65 mm (other sizes on request)
Bottle height70–300 mm (other heights on request)
Capping speed20–50 bottles/min
Cap typesPlastic or metal round caps, pump caps, duck-bill caps
Machine weight90 kg
Dimensions (L×W×H)2000 × 760 × 1500 mm

Electrical configuration

ComponentBrand
PLCMitsubishi
TouchscreenKunlun Tongtai (MCGS)
MotorZhongda
CylinderFeite
Solenoid valveAirTAC
RelayOmron

Configuration is confirmed in the contract.

Quoted to your bottle, cap and line speed.
