Small character continuous inkjet printer
Also called a small character inkjet printer or CIJ printer.

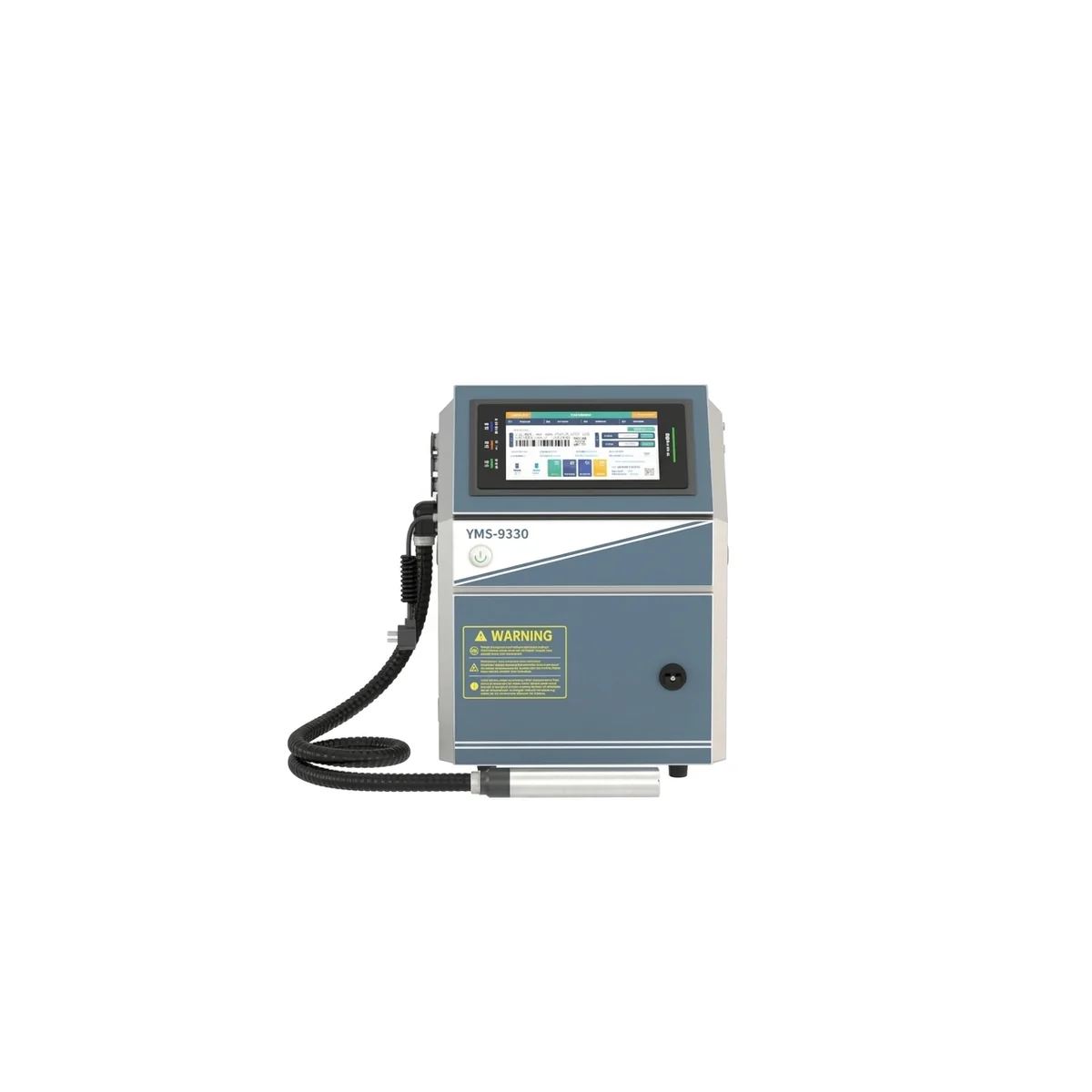

| Dimensions | 441 × 306 × 504 mm |
|---|---|
| Weight | 25 kg |
| Voltage | 80–260 VAC, 50–60 Hz |
| Protection | IP55 |
| Character height | 1–15 mm |
| Print distance | 5–20 mm |
| Lines | 1–5 |
| Print speed | |
| 5-dot | 6.3 m/s |
| 7-dot | 4.8 m/s |
| 9-dot | 3.78 m/s |
| 12-dot | 2.36 m/s |
| 16-dot | 1.8 m/s |
| 24-dot | 0.6 m/s |

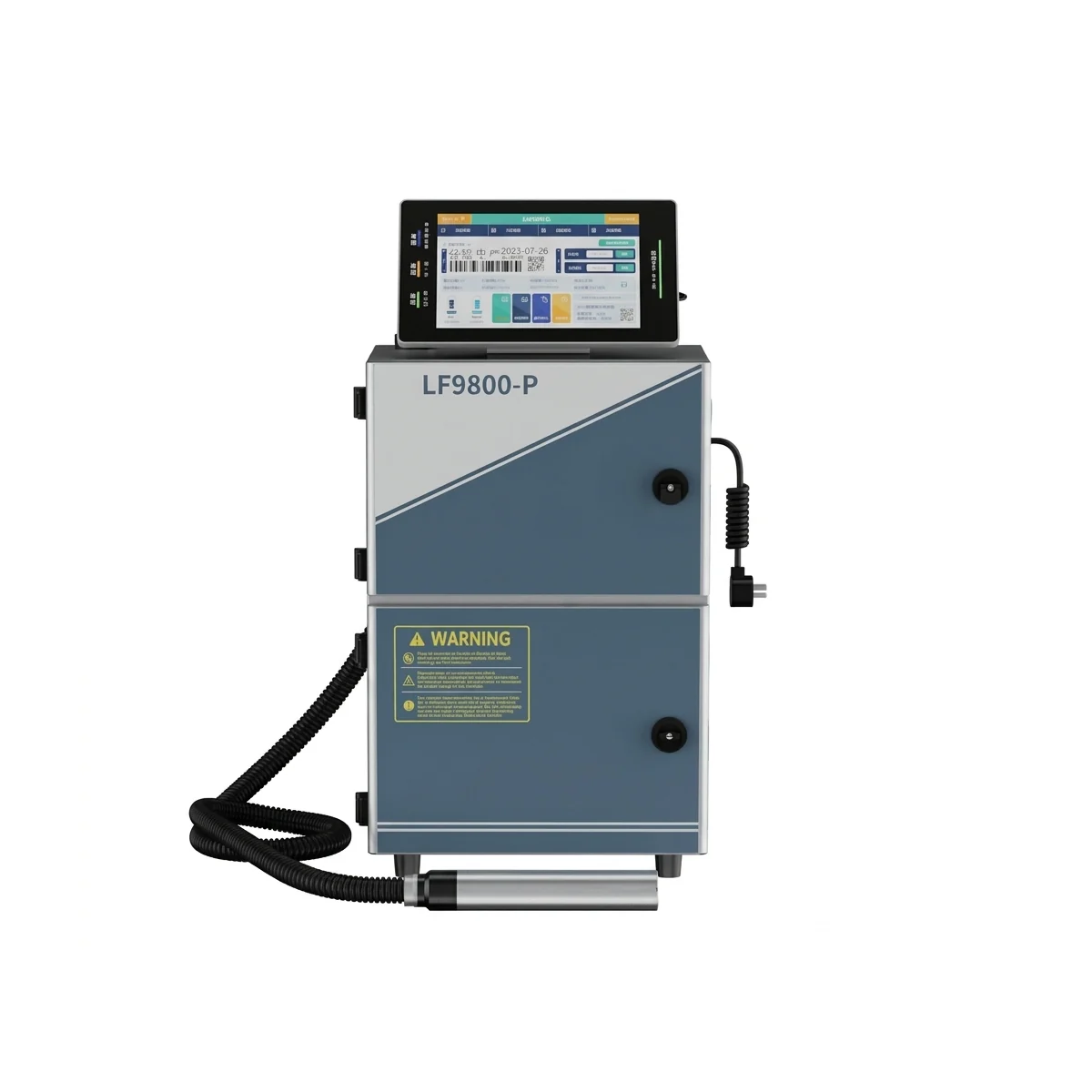

| Dimensions | 365.6 × 306 × 573.8 mm |
|---|---|
| Weight | 22 kg |
| Voltage | 85–265 VAC, 50–60 Hz |
| Protection | IP55 |
| Character height | 1–12 mm |
| Print distance | 1–30 mm |
| Lines | 1–5 |
| Print speed | |
| 5-dot | 325 m/min |
| 7-dot | 315 m/min |
| 9-dot | 245 m/min |
| 12-dot | 138 m/min |
| 16-dot | 93 m/min |
| 24-dot | 37 m/min |
| 34-dot | 18 m/min |

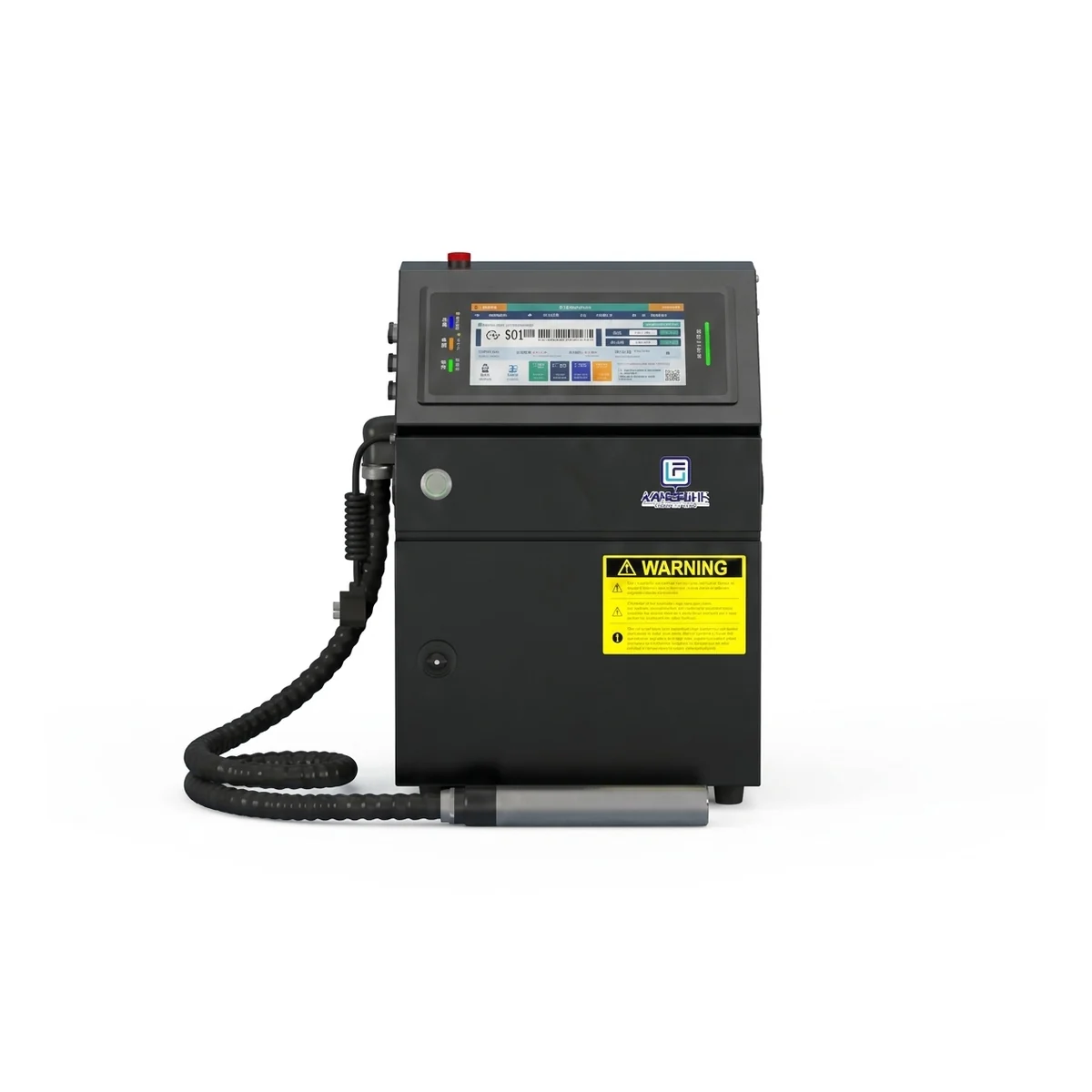

| Dimensions | 318 × 365 × 722 mm |
|---|---|
| Weight | 25 kg |
| Voltage | 80–260 VAC, 50–60 Hz |
| Protection | IP55 |
| Character height | 1–15 mm |
| Print distance | 5–20 mm |
| Lines | 1–5 |
| Print speed | |
| 5-dot | 5.4 m/s |
| 7-dot | 5.25 m/s |
| 9-dot | 4.08 m/s |
| 12-dot | 2.36 m/s |
| 16-dot | 1.55 m/s |
| 24-dot | 0.6 m/s |
A continuous inkjet printer marks variable codes on packaging as it moves on a line. It is used on production lines. The printhead does not touch the product. Ink is delivered through a hose to the printhead. Typical codes are date, time, batch, serial number, barcode, and QR code. Ink colours are black, blue, red, and yellow. The hose length is 3 m, and up to 6 m on request. Character height, print distance, and line speed are listed in the specifications. Other requirements are confirmed on the quotation.
