Single-head automatic capping machine

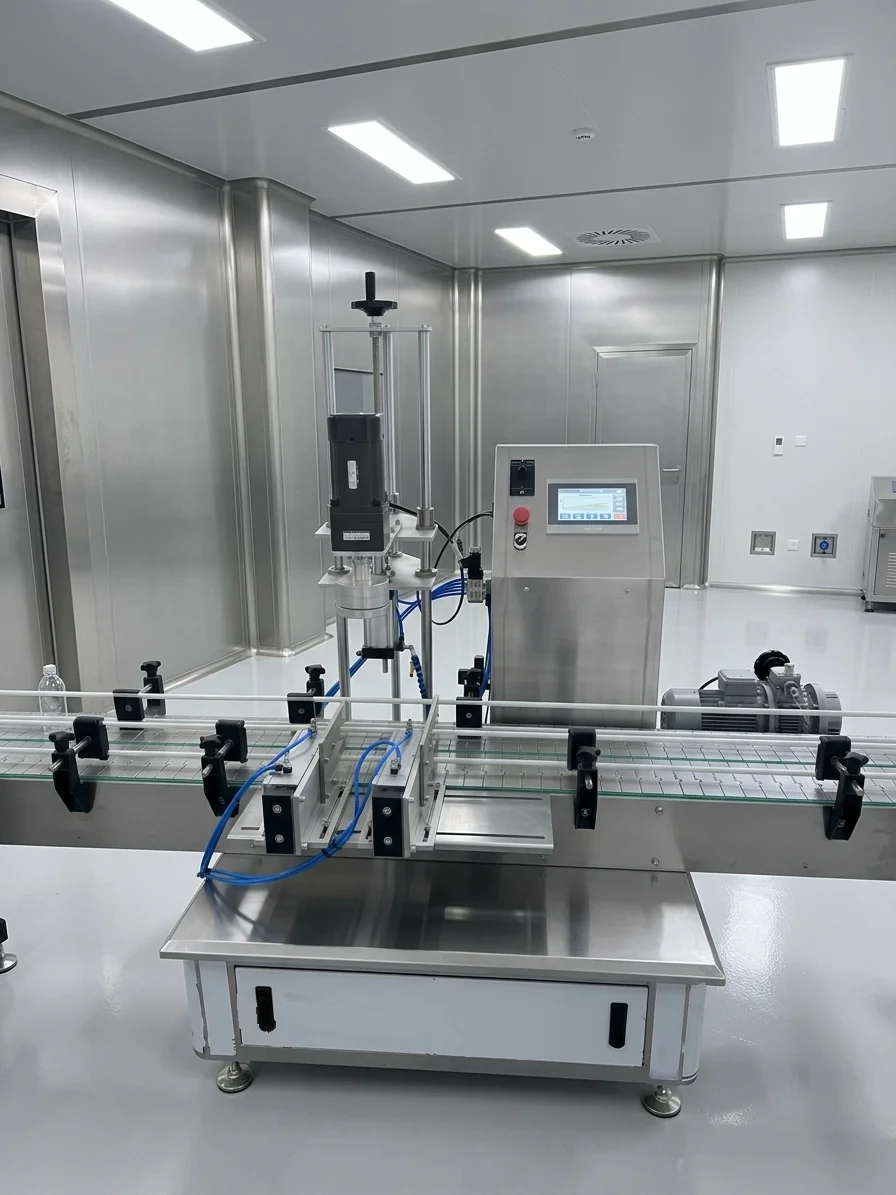

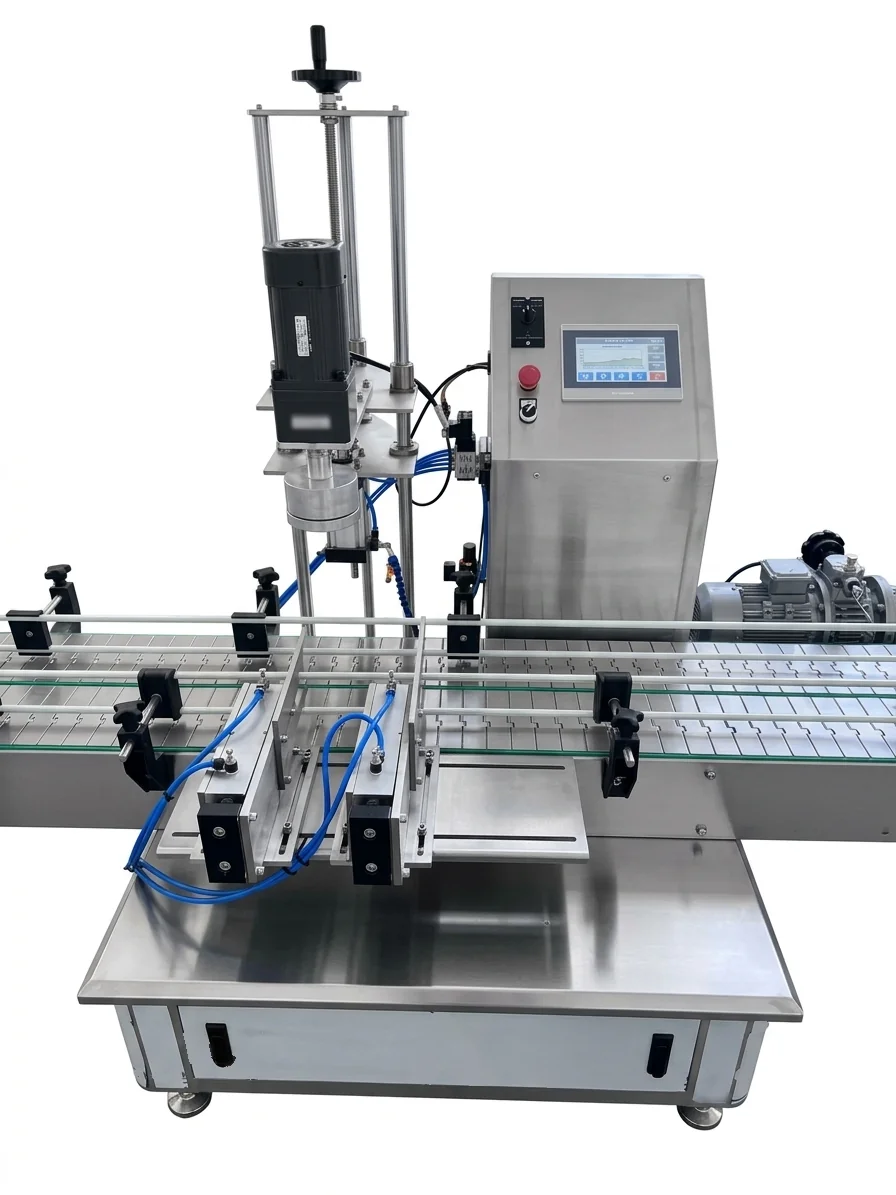

This is a servo-driven single-head automatic capping machine for screw caps on an inline conveyor. It is used for daily-chemical, pharmaceutical and food bottles. Output on this page is 1,000–3,000 bottles/hour. Bottle, cap and torque are set to your samples.

  • Single capping head driven by a servo motor.
  • Handwheel and lead screw adjust the capping height.
  • Pneumatic side belts clamp the bottle during capping.
  • Touchscreen control with emergency stop.
  • Inline conveyor with adjustable guide rails.
  • Stainless steel cabinet and frame.

Ask for a quote

Description

Servo-driven single capping head for screw caps on an inline conveyor, for daily-chemical, pharmaceutical and food bottles.

Specifications

Output1,000–3,000 bottles/hour
PowerConfirmed per configuration
Cap typesScrew caps (other caps on request)
Bottle, cap and torqueSet to your samples

Quoted to your bottle, cap and line speed.

Request a quote

How it works

Bottles enter on the conveyor and the side belts clamp each bottle. The servo-driven head comes down onto the cap and screws it on to the set torque. The capping height is set with the handwheel, and the guide rails are adjusted to the bottle.

Typical applications

Screw caps on bottles for daily-chemical, pharmaceutical and food products, on an inline conveyor.

What we confirm for the quote

Bottle and cap samples, the required torque, the line speed, and the site power.

FAQ

Which caps can it close?
Screw caps. Other caps on request.
How is it changed to another bottle?
The capping height is set with the handwheel and lead screw, and the guide rails are adjusted to the new bottle.
Single-head or four-wheel capper?
The single-head capper screws on one cap at a time with a servo head. The four-wheel capper closes caps with four spinning wheels and handles spray heads, pump heads, round caps, and duck-bill caps.
