Also called a lobe pump filler or rotary pump filler.

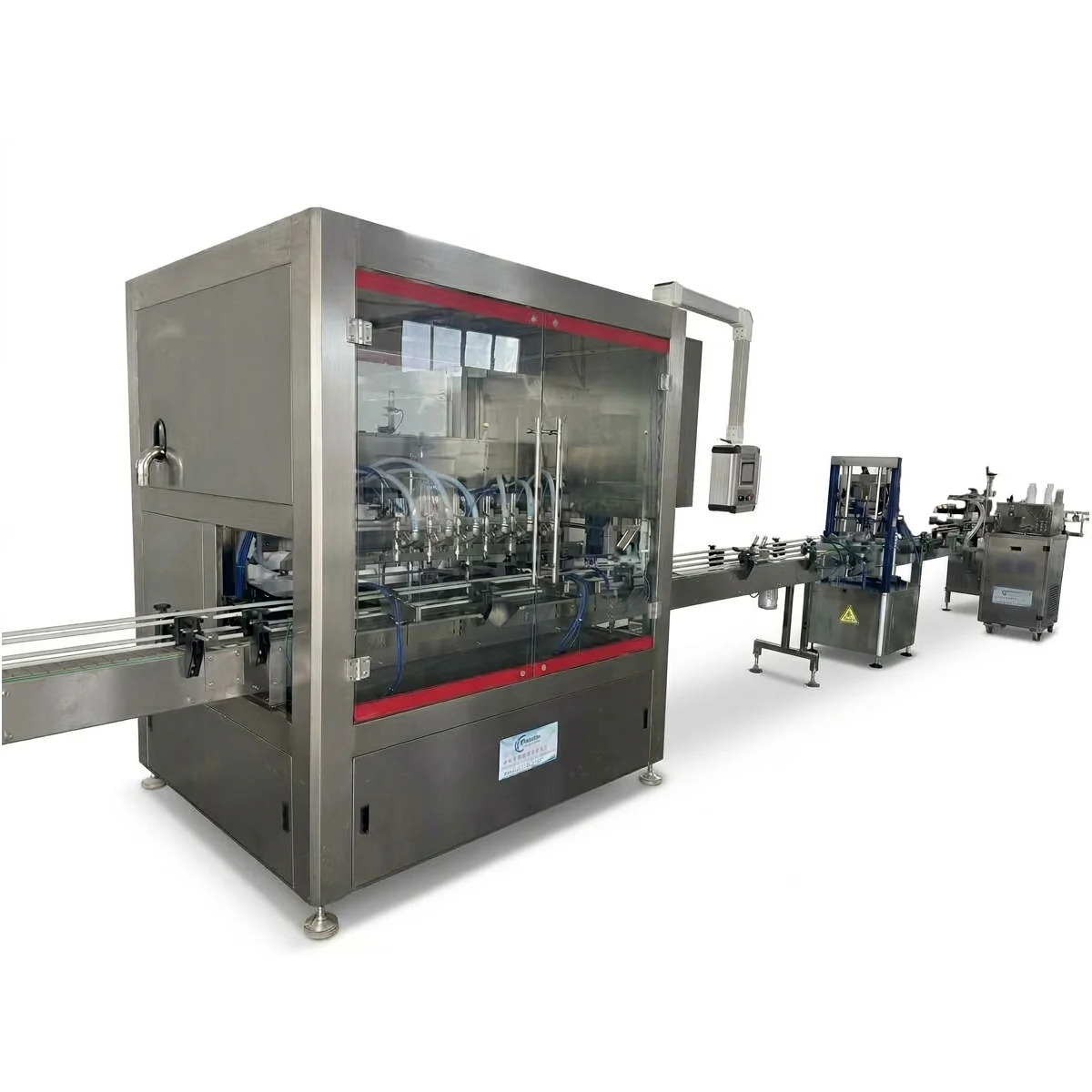

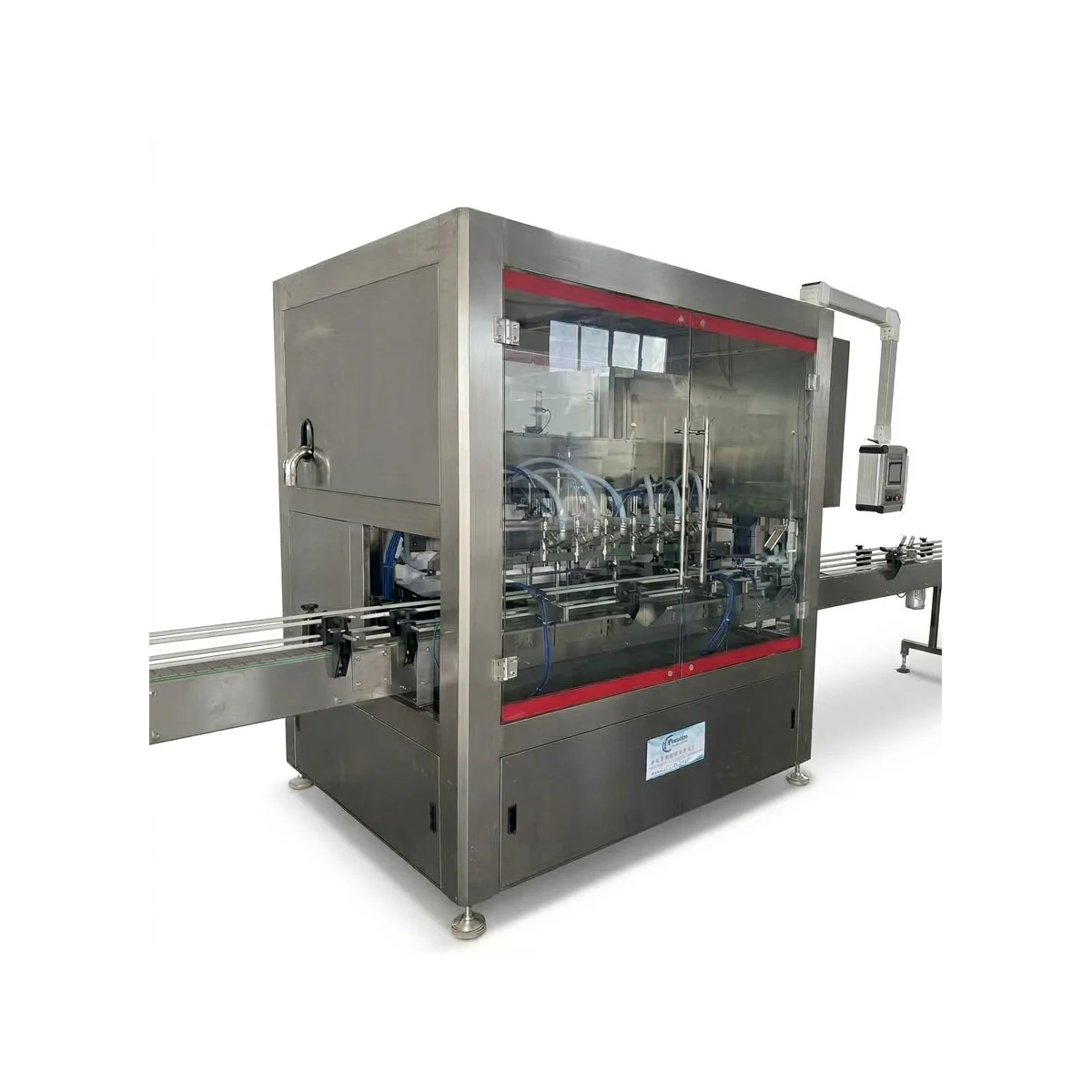

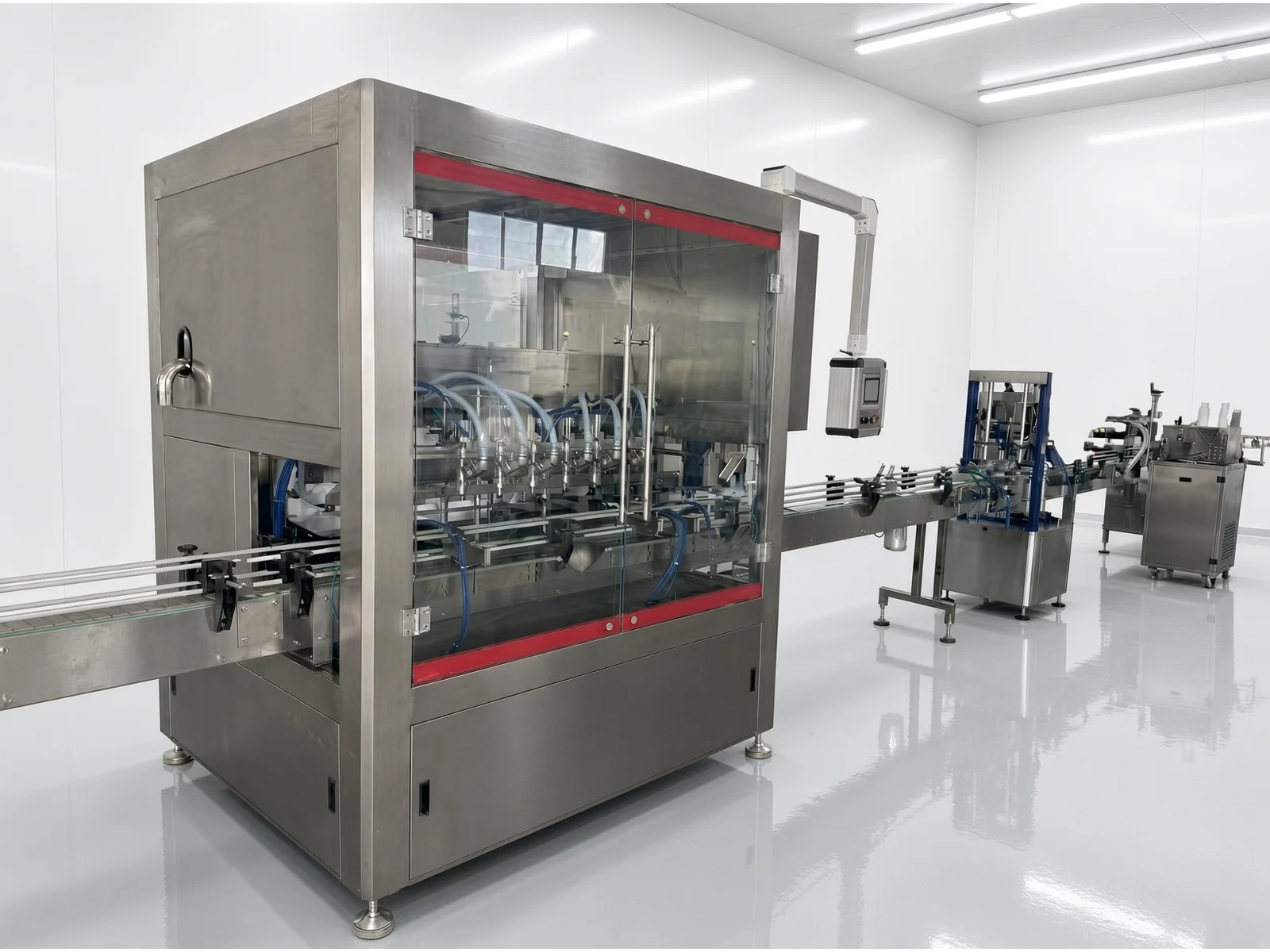

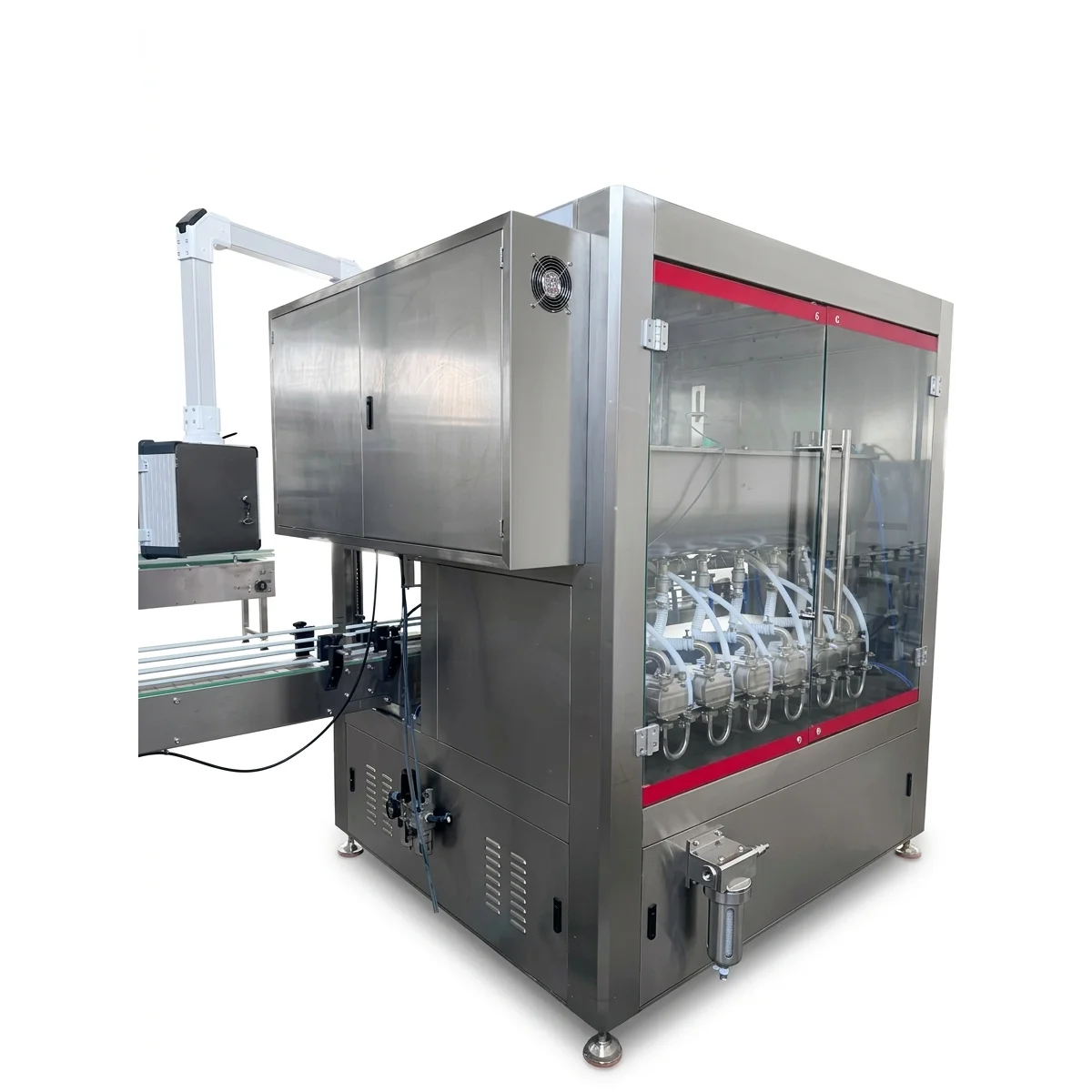

An automatic rotor pump filling machine for liquids and high-viscosity materials. Fill range 50 g to 5 kg. Round or square containers. Bottle diameter and height are adjustable. The number of heads is customized to the customer's output requirement. Motor and voltage are customized to the site. The machine is quoted to the liquid, the container, and the site.
2-head baseline; other head counts customized to output.
| Fill range | 50 g to 5 kg |
|---|---|
| Heads | customized to output, common 2, 4, 6 |
| Voltage | customized to site |
| Power | 1.5 kW (2-head baseline) |
| Air | 0.4–0.6 MPa |
| Cap diameter | Φ20–65 mm, customizable |
| Bottle height | 70–300 mm, customizable |
| Cap speed | 800–1700 bottles/hour (2-head baseline) |
| Weight | 500 kg (2-head baseline) |
| Dimensions | 2000 × 2000 × 1250 mm (2-head baseline) |
| Contact parts | 304 stainless steel |
