Cap elevator

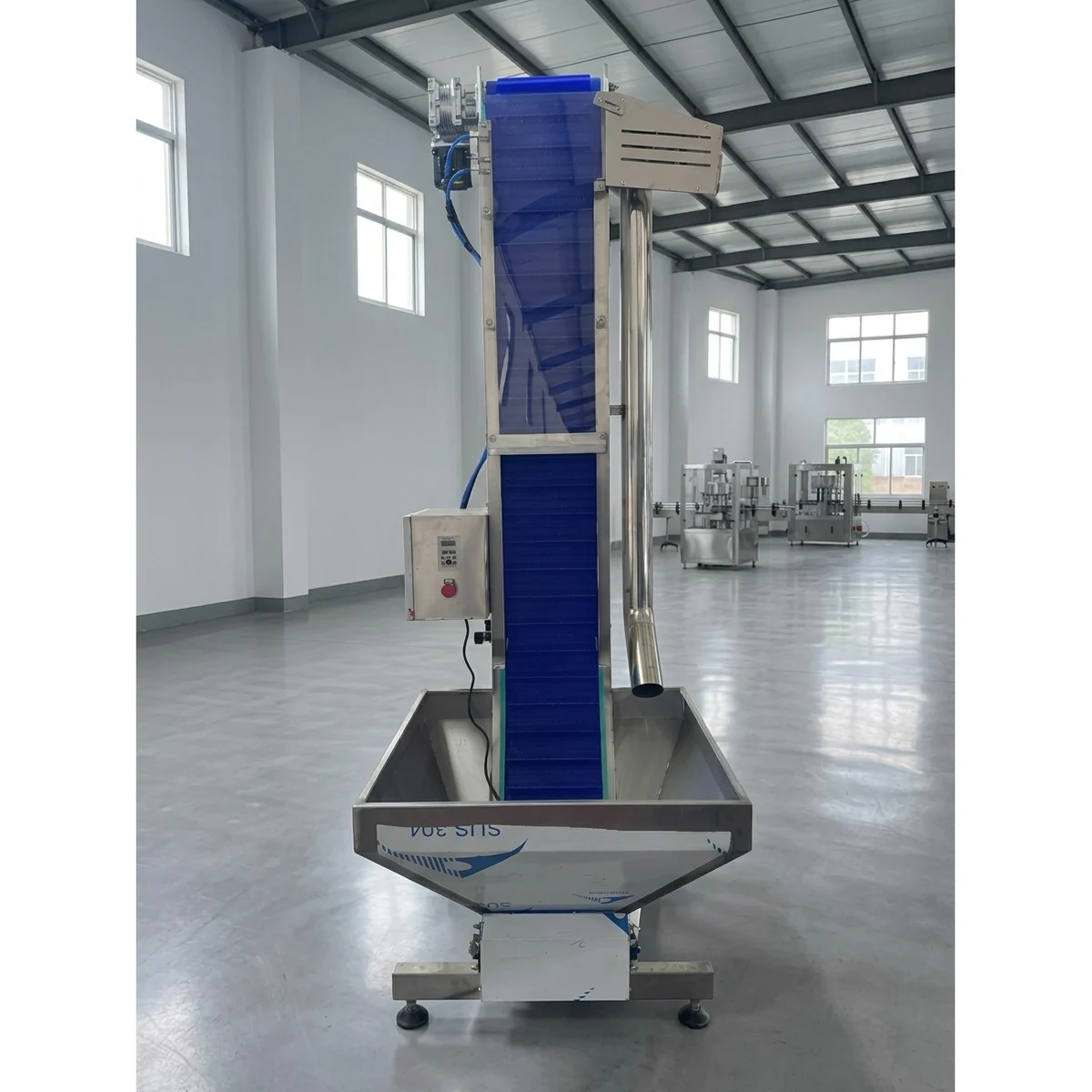

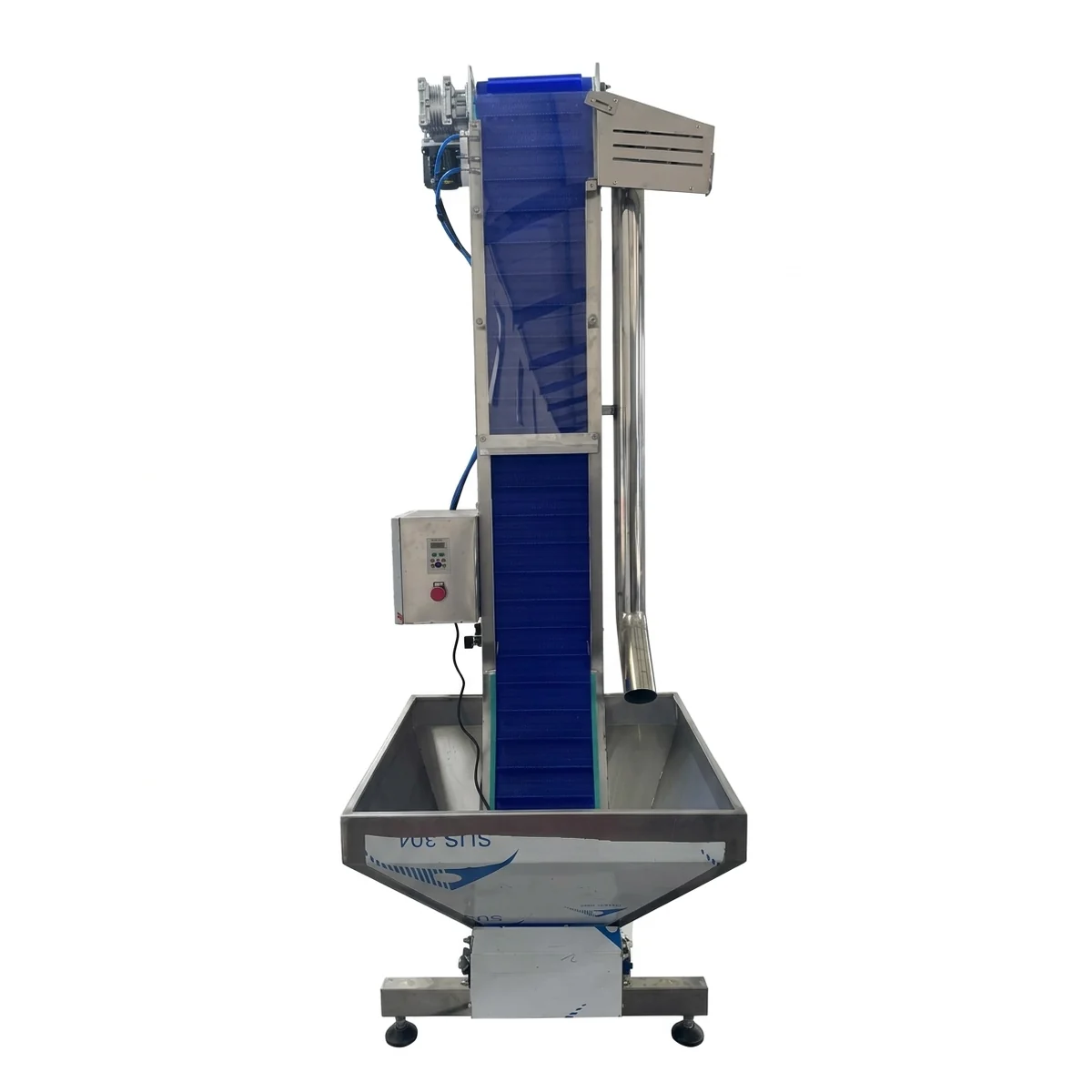

This is an automatic cap elevator for feeding, sorting and delivering caps. One machine is built for one cap size from your cap sample. Specs on this page include 220 V, 0.2 kW, adjustable speed; compressed air is supplied by the customer. Material is 201 or 304 stainless steel.

  • Automatic cap feeding, automatic cap sorting, automatic cap delivery
  • One machine is built for one cap size. Send a sample of that cap; the machine is customised to the sample.
  • 220 V, 0.2 kW, adjustable speed
  • Compressed air supplied by the customer
  • Material: 201 or 304 stainless steel

Ask for a quote

Description

Customised to your cap samples.

How it works

Caps are loaded into a hopper. A lifting belt carries them up, and caps that are not lying the right way fall back into the hopper. Correctly oriented caps slide down a chute to the capping machine, so the capper always has caps ready.

Typical applications

Used in front of a capping machine on a bottle filling line, to feed caps without manual loading at the capper.

What we confirm for the quote

A sample of the cap, the capping machine it feeds, the chute height, and the site power. Compressed air is supplied by the customer.

Specifications

FunctionAutomatic cap feeding, sorting, and delivery
Cap sizeOne machine built for one cap size โ€” Confirmed on quotation (send a cap sample)
VoltageConfirmed on quotation
PowerConfirmed on quotation
SpeedConfirmed on quotation (adjustable)
Compressed airSupplied by the customer โ€” Confirmed on quotation
MaterialConfirmed on quotation (201 or 304 stainless steel named on this page)
Chute heightConfirmed on quotation
Capper fedConfirmed on quotation
Cap sampleRequired โ€” Confirmed on quotation
Site powerConfirmed on quotation

FAQ

Can one elevator handle different caps?
No. One machine is built for one cap size, so send a sample of the cap you will run.
Why do you need a cap sample?
The shape and weight of the cap decide how the caps are sorted and fed. The machine is customised to the sample.
Does it need compressed air?
Yes. Compressed air is supplied by the customer.
