A fish protein production line on this site is centered on a fish bone colloid mill for wet fish meat and fish bone, and the mill is the equipment shown on this page. Optional screening, mixing, storage, and filling are selected after the duty is known and quoted separately, not as a fixed complete plant.
Fish protein production line equipment centered on a fish bone colloid mill. Other unit operations quoted to the duty.
Fish protein production line scope on this site centers on a colloid mill for wet fish meat and fish bone. Optional screening, mixing, storage, and filling are selected after the duty is known and quoted separately. No public yields or capacities.
Process stages are selected after raw material and product form are known. A common sequence is raw-material handling, wet grinding with a fish bone colloid mill, then optional screening, mixing or storage, and optional filling or packaging when the product is a liquid or paste. Stages are not a fixed public flowsheet.

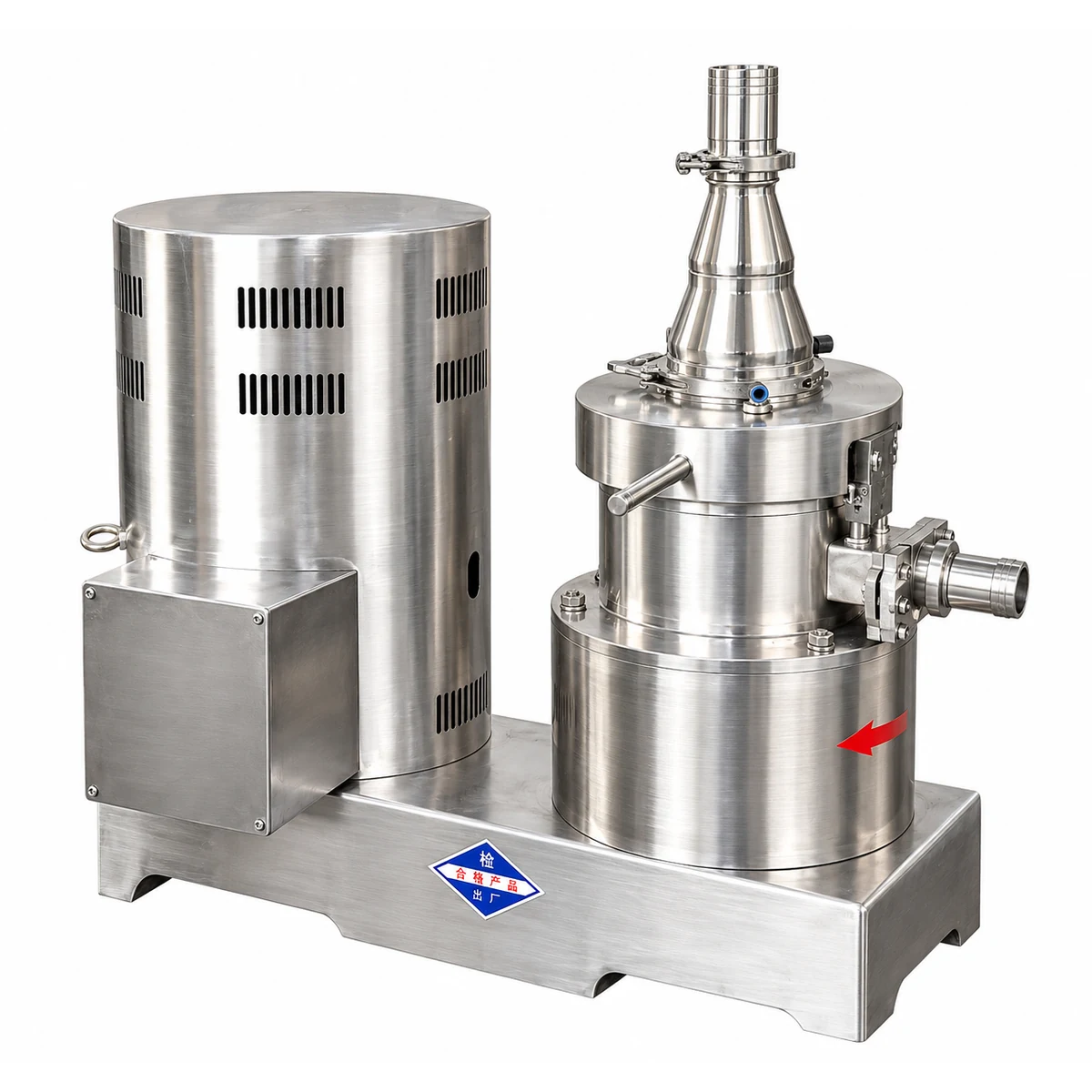

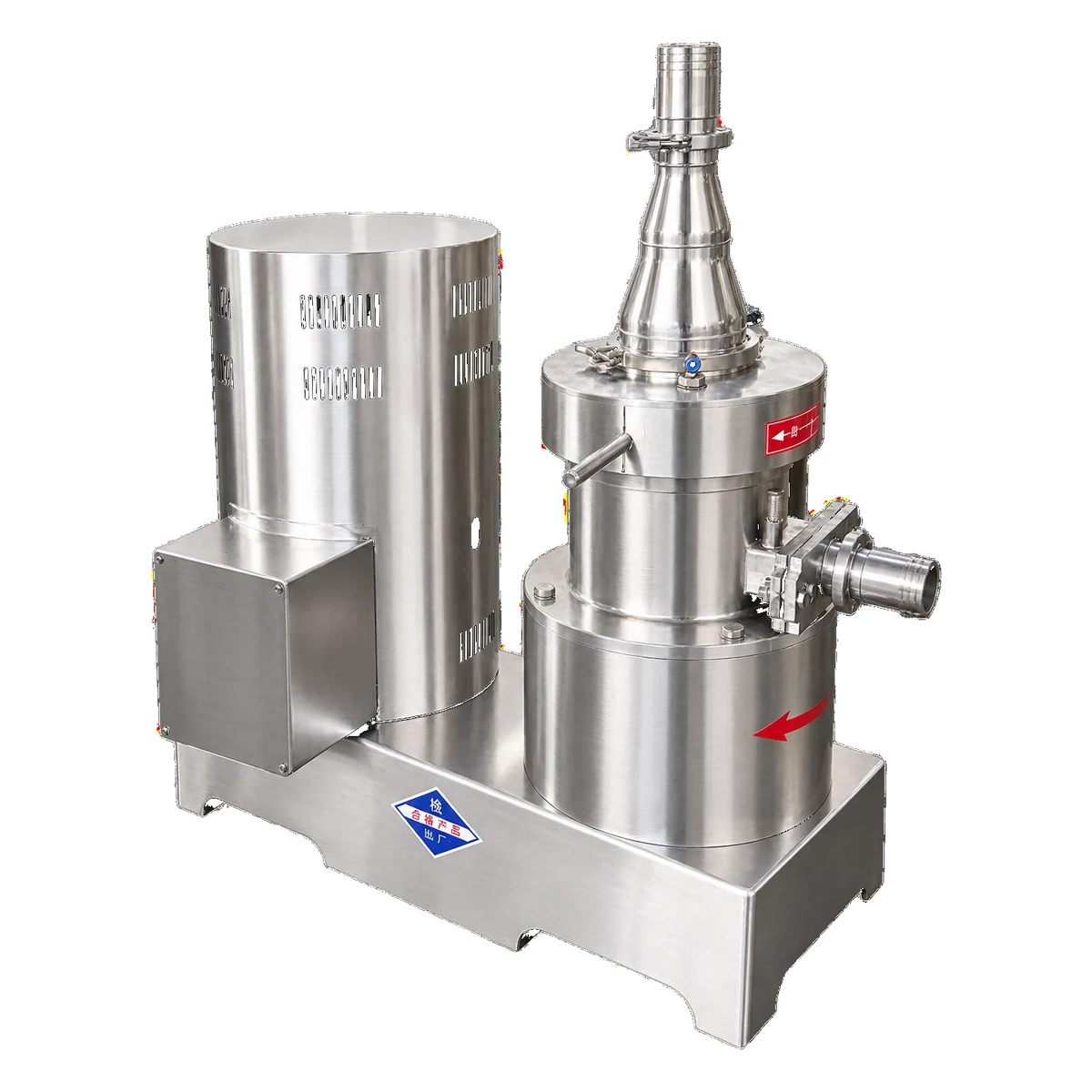

Included on this page: the fish bone colloid mill (suitable for fish meat and fish bone; also used for juice, jam, sauces, cheese, peanut butter, and similar pastes) and the model dimensions table. Material listed: 304 stainless steel.
Not included as a fixed package on this page: a complete turnkey plant, public throughput or yield figures, or a mandatory set of downstream machines. Unit operations beyond the mill are listed on the quotation after the duty is known.
Send for a quote: raw material (fish meat / fish bone / other), target product form, required stages, site power and space, and any filling or packaging needs. Duty, configuration, and price are confirmed on the quotation only.
The equipment shown here establishes the colloid-milling starting point, not a complete hydrolysate plant. Before accepting a configuration, list the raw material and intended product, each required operation, the equipment selected for it, interfaces with existing machines, and the responsible party. Identify screening, mixing, storage and filling separately rather than treating them as automatic inclusions.
Any hydrolysis, separation, concentration or drying requirement needs written scope confirmation, including controls, utilities and process responsibility. A process illustration or related-product link does not confirm inclusion, suitability, yield or a validated treatment. Where evidence is missing, record “awaiting written confirmation”, not “supplied” or “not supplied”.
| Model | Hopper diameter / height (mm) | Feed inlet (mm) | Overall dimensions, square-hopper type (L×W×H, mm) | Outlet height above floor (mm) | Base (L×W×H, mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 50 | 280/195 | 36 | 590×300×595 | 240 | 500×283×100 | 48.5 |
| 85 | 360/240 | 70 | 780×430×805 | 325 | 680×330×130 | 118 |
| 130 | 420/340 | 85 | 1010×485×965 | 385 | 850×370×140 | 183.5 |
| 160 | 425/390 | 100 | 1030×570×1000 | 385 | 850×365×135 | 216 |
| 180 | 500/470 | 130 | 1185×580×1220 | 435 | 965×445×200 | 331.5 |
| 210 | 550/470 | 150 | 1360×600×1280 | 510 | 1095×520×200 | 449 |
| 240 | 600/485 | 195 | 1370×670×1295 | 540 | 1063×510×195 | 501.5 |
| 300 | 700/550 | 213 | 1760×710×1390 | 542 | 1500×575×188 | 657 |
Quote inputs for the fish protein line scope. Model dimensions stay in the colloid mill table above. Ratings below are confirmed on the quotation.
| Equipment shown | Confirmed on quotation (fish bone colloid mill named on this page; model from the dimensions table) |
|---|---|
| Contact material | Confirmed on quotation (304 stainless steel named on this page) |
| Raw material | Confirmed on quotation (fish meat / fish bone / other named in the RFQ) |
| Product form | Confirmed on quotation (e.g. concentrate or powder named by you — no standard form on this page) |
| Process stages | Confirmed on quotation (selected after duty is known — not a fixed public flowsheet) |
| Related unit operations | Confirmed on quotation (vibrating screen, mixing tank, filling line machines as needed — see linked pages) |
| Throughput / yield | Confirmed on quotation (this page does not publish public throughput or yield figures) |
| Site power / space | Confirmed on quotation |
| Quote scope | Duty, configuration, and price — Confirmed on quotation |
