Also called a mixing tank, reactor, reaction vessel, or jacketed tank.

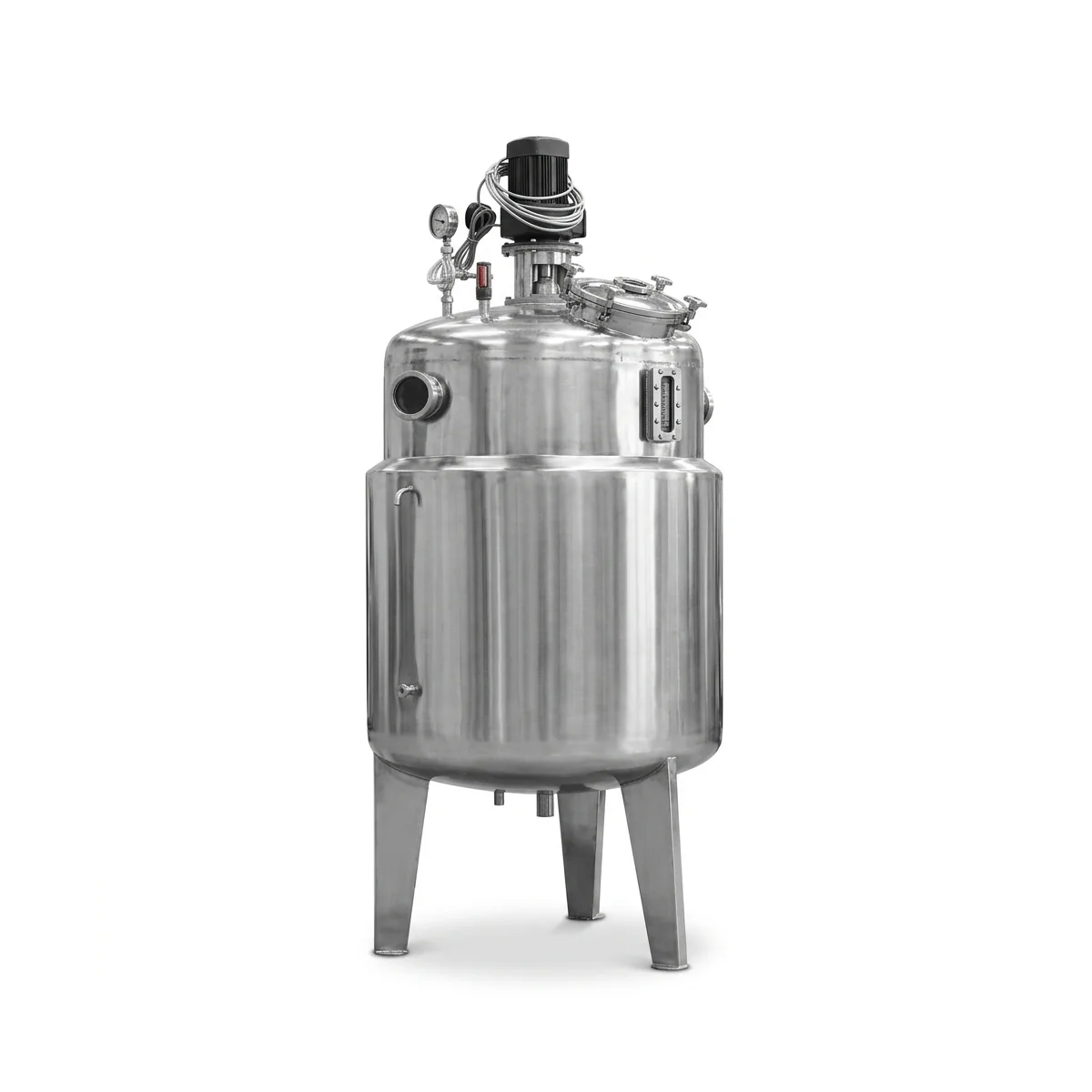

A stainless steel mixing tank for liquids and slurries. The tank has a jacket for heating, cooling, or insulation. An agitator mixes the contents. Speed is adjustable. The inner surface is mirror polished. Capacity is confirmed on the quotation. Common sizes run from 100 L to 1000 L. Larger tanks are available. The tank is quoted to the duty, the liquid, and the site.
The tank is used in food and beverage processing, pharmaceutical formulation, cosmetics, and chemical blending. Food uses include sauces, syrups, dairy, and beverages. Pharmaceutical uses include liquid medicines and creams. Cosmetic uses include lotions and shampoos. Chemical uses include adhesives, paints, and detergents. It is also used in fish protein lines. The duty, the liquid, and the site are confirmed on the quotation.
| Material | 304 or 316L stainless steel |
|---|---|
| Capacity | custom, common sizes 100–1000 L |
| Jacket | heating, cooling, or insulation |
| Agitator | speed adjustable |
| Inner surface | mirror polished |
| Working pressure | 0.25 MPa |
| Temperature range | confirmed on the quotation |
| Sight glass | yes |
| Manhole | yes |
| CIP | available |
